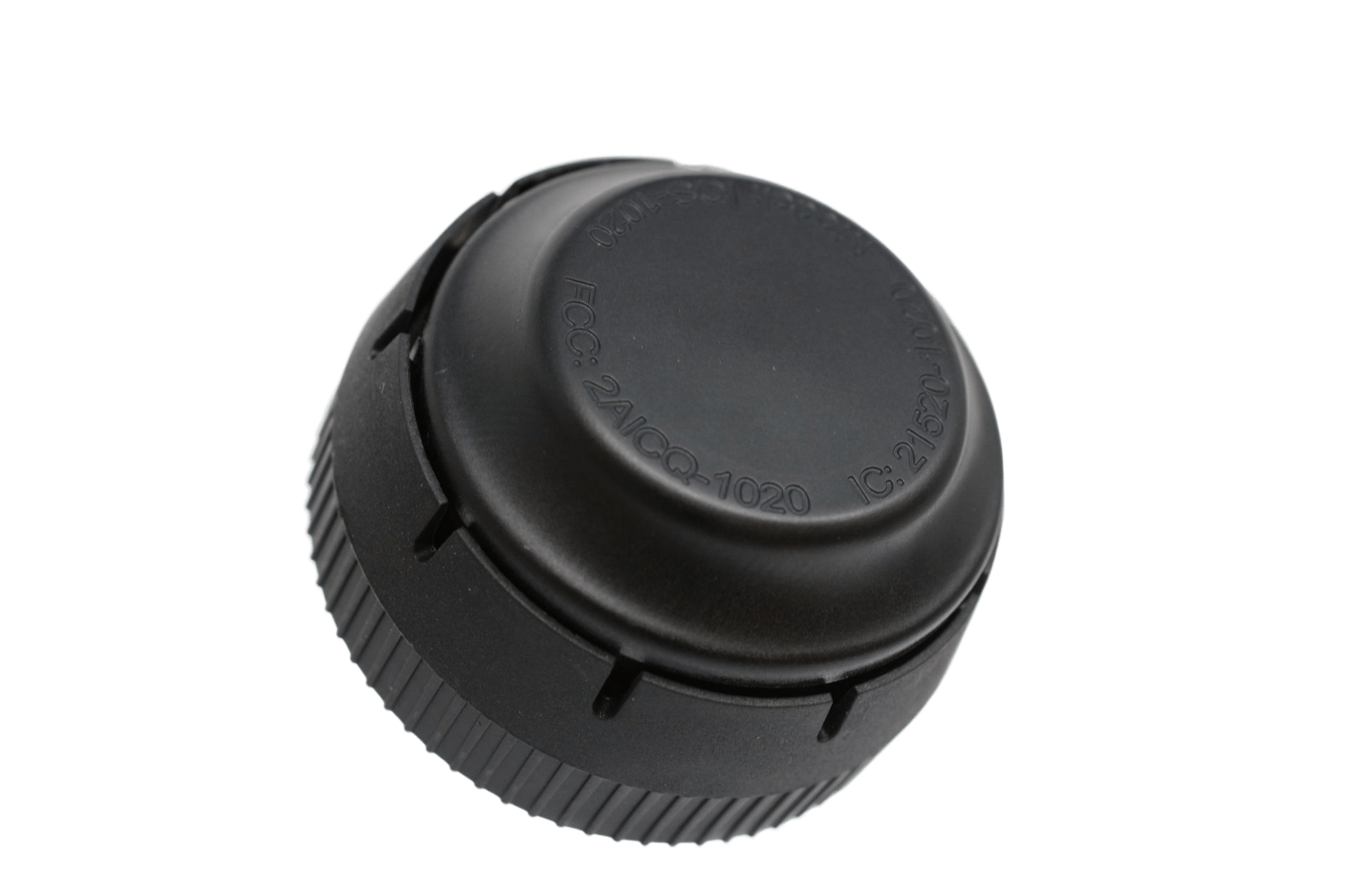

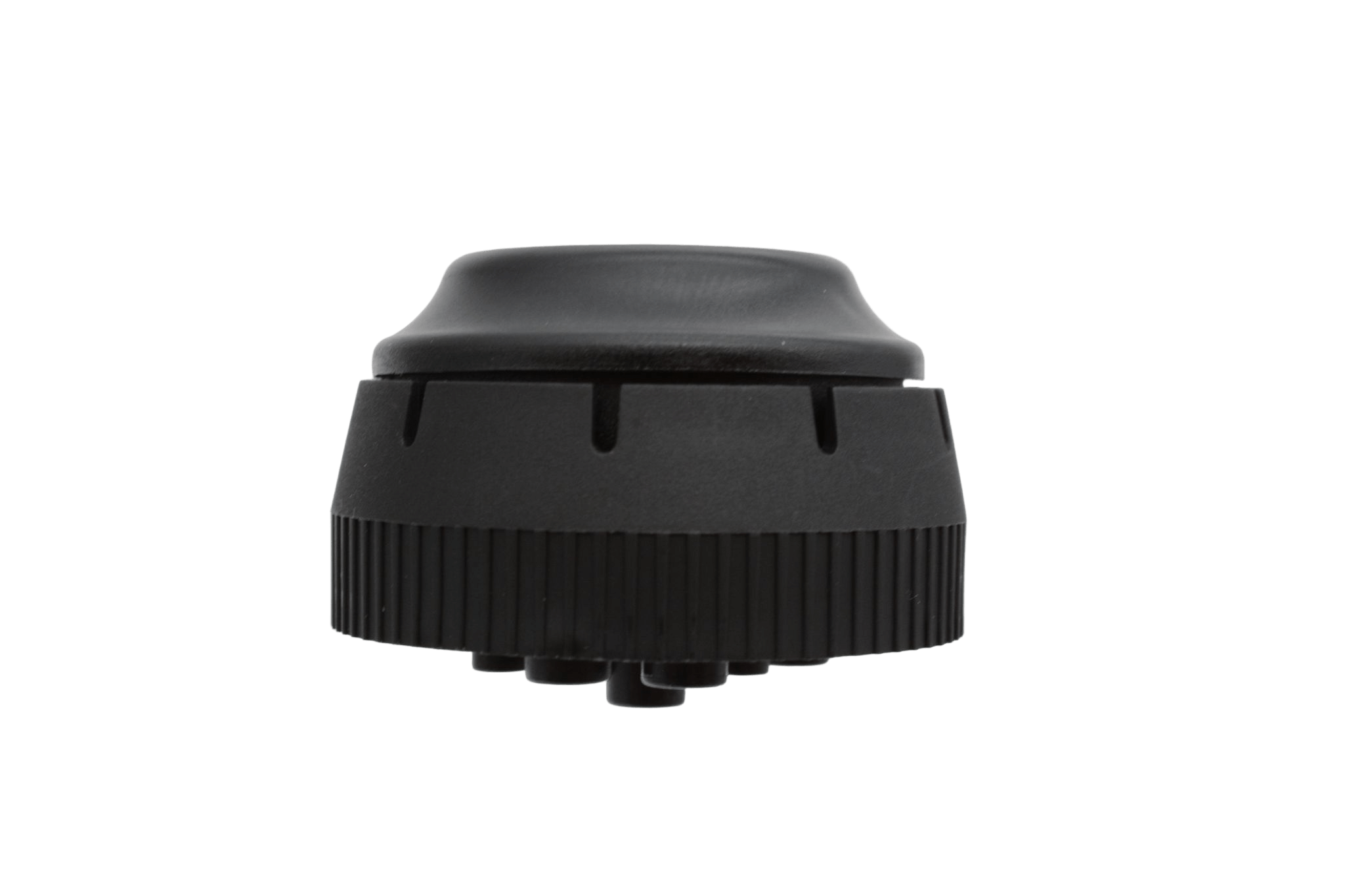

IO-1020 Micro ELD Device

Description

IO-1020 Micro ELD

Tiny yet powerful Electronic Logging Device with WiFi, Bluetooth & multi-bus vehicle compatibility

The Falcon Zoom IO-1020 Micro ELD is designed to simplify hours-of-service (HOS) compliance for truck drivers and fleet managers. This compact plug-and-play device connects directly to your vehicle’s diagnostic port, offering seamless data transfer, precise GNSS tracking, and FMCSA-certified performance in a rugged build.

Key Features

• FMCSA Compliant – Fully meets DOT and ELD mandate requirements for hours tracking and electronic driver logs.

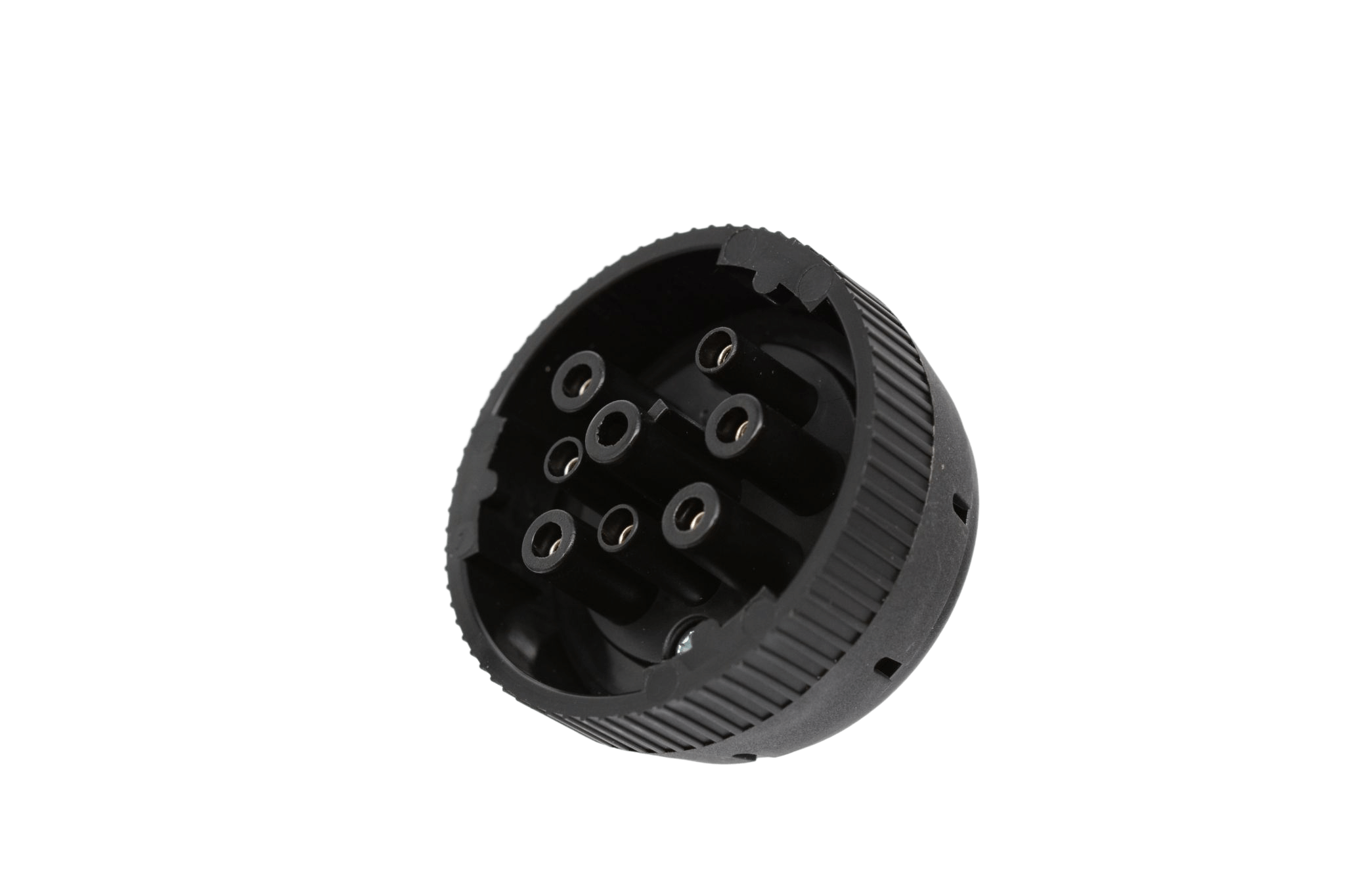

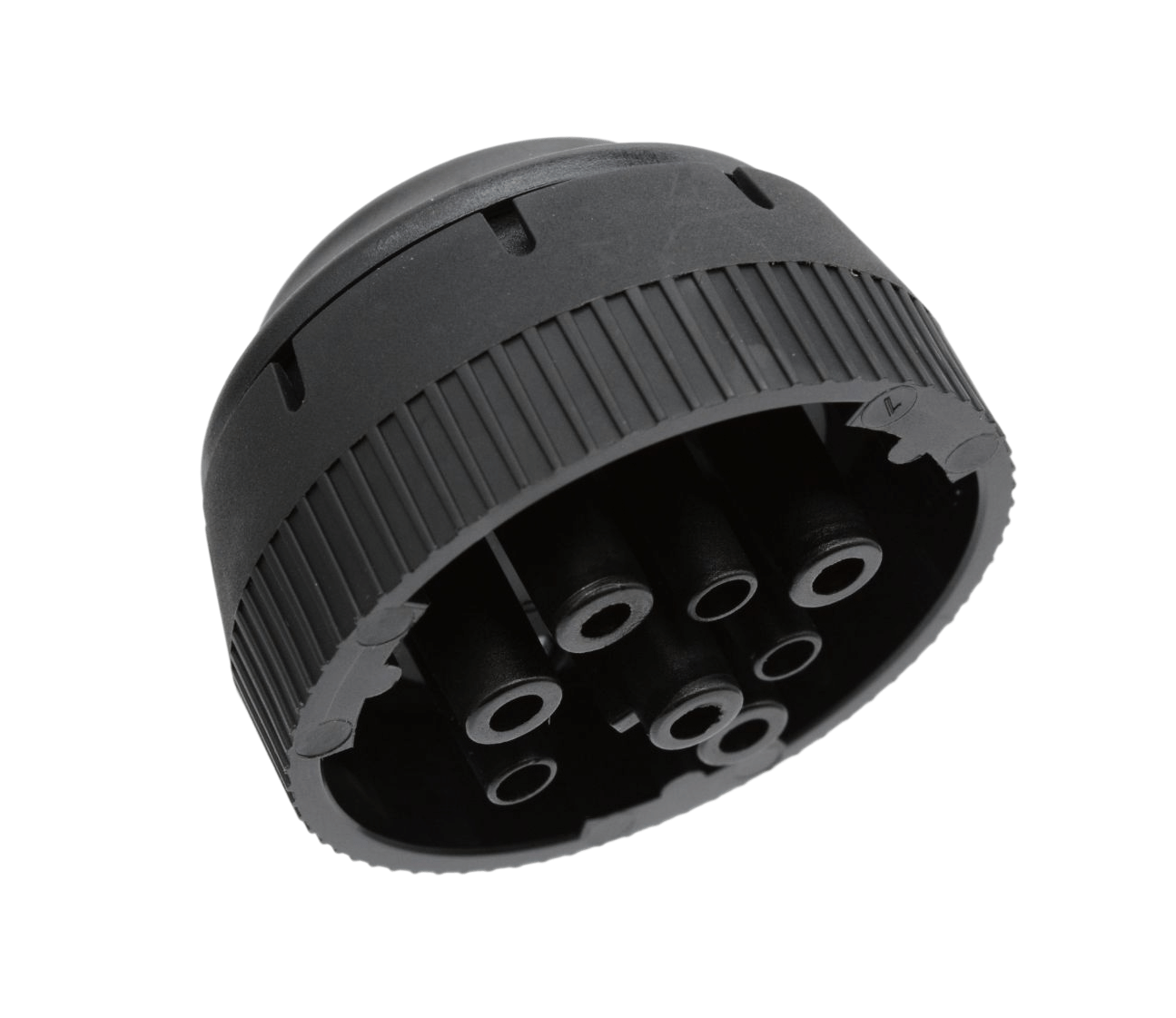

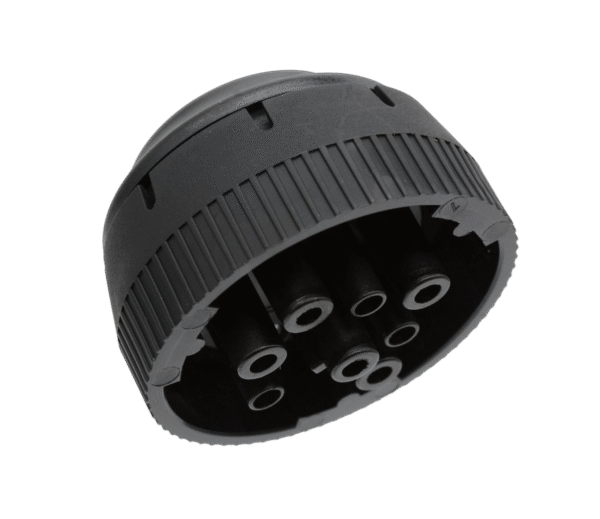

• Plug & Play – Built-in J1939 9-pin connector, with optional adapters for OBD-II, RP1226, and J1708.

• Wireless Connectivity – WiFi 802.11b/g/n and Bluetooth 4.2 for fast, reliable data transfer.

• Advanced GNSS – Multi-constellation satellite support with high-gain internal antenna for precise tracking.

• Rugged Protection – Resistant to over/under/reverse voltage, static discharge, and extreme weather.

• Smart Indicators – RGB LED lights provide instant status updates for connectivity and diagnostics.

• Compact & Durable – Small, lightweight, built from nylon/polycarbonate to withstand daily trucking use.

Specifications

• Size: approx. 40 × 40 × 28 mm

• Weight: ~28 g

• Operating Temperature: −40 °C to +125 °C

• Power Protection: Over/under/reverse voltage, ESD protection

• Wireless: WiFi 802.11b/g/n, Bluetooth 4.2 (dual-mode)

Package Includes

• IO-1020 Micro ELD main unit

• Standard 9-pin connector

• Optional adapters available (OBD-II, RP1226, J1708)

Why Choose the IO-1020?

For drivers and fleets that want simplicity, compliance, and durability in one device, the IO-1020 Micro ELD delivers. Its compact design, multiple bus compatibility, and wireless data transfer make it a smart choice for reliable electronic logging across all heavy-duty vehicles.
