EM109 GPS Tracking Device

Description

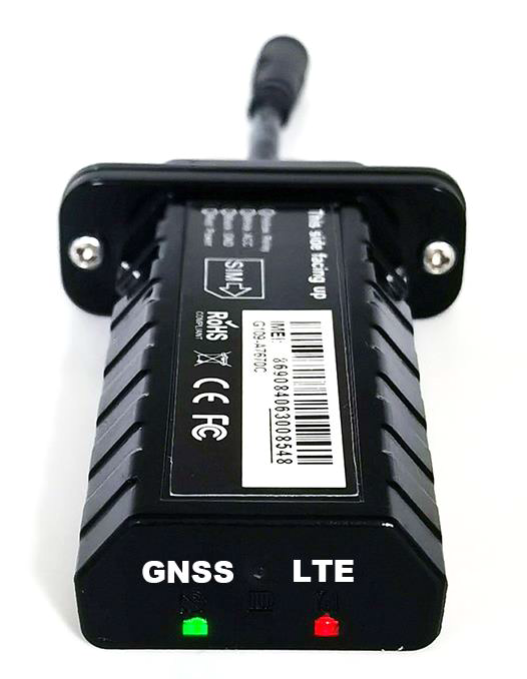

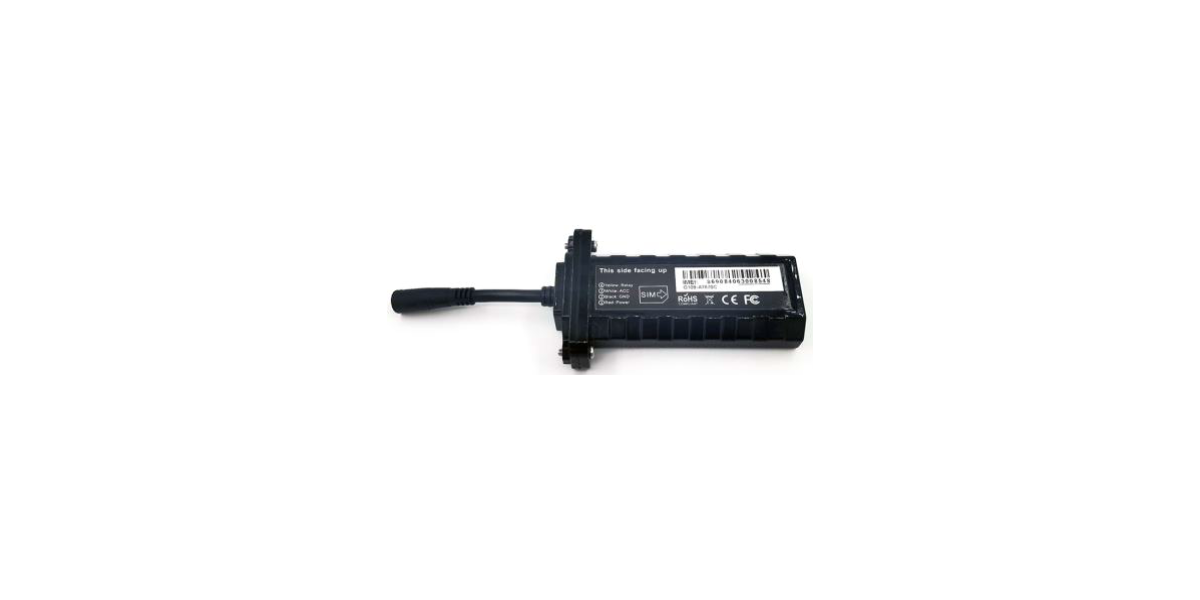

EM109 GPS Tracker

Compact, Waterproof, and Built for Trucks, Cars, and Motorcycles

The Falcon Zoom EM109 is a powerful 4G LTE Cat1 GPS tracking device for versatile fleet and vehicle monitoring. An IP67 waterproof rating and compact design ensures reliable performance in harsh environments while delivering advanced tracking and control features.

Key Features

• Real-Time Tracking – Monitor location accurately across GPS, GLONASS, and QZSS satellites (<2m positioning accuracy).

• Engine Control – Remotely cut off the engine for enhanced theft protection.

• Smart Alerts – Get instant notifications for overspeeding, towing, harsh braking, harsh acceleration, and vibration.

• Geo-Fencing – Set safe zones and receive alerts when vehicles enter or exit.

• I/O Ports – 1 digital input (ignition detection) and up to 3 outputs for engine cut-off, buzzer alerts, and flashing lights.

• Buffer & OTA Updates – Stores data in low-signal areas and supports over-the-air firmware updates.

• Powerful Build – Wide power range (DC 9V–100V), low power consumption, built-in backup battery for up to 3 hours.

Specifications

• Size: 3.62 × 1.57 × 0.71 in

• Weight: 2.12 oz (net), 3.70 oz (package)

• Color: Black

• Operating Temperature: -14°F to 176°F

• Power Supply: DC 9V–100V

• Backup Battery: 110mAh (up to 3 hours)

• Cellular Module: Global 4G LTE (regional variants available)

• GNSS Accuracy: <2m

Package Includes

• EM109 GPS Tracker (Main Unit)

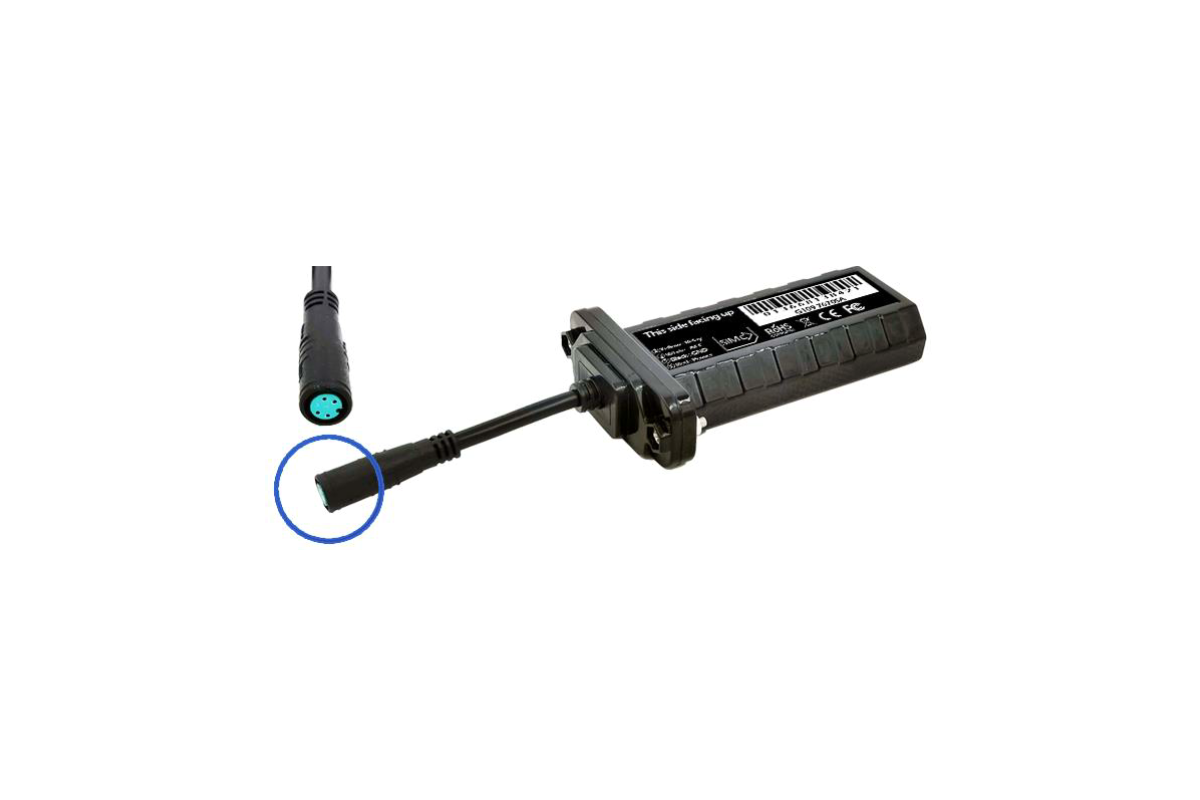

• Standard Wire Harness (4-pin)

• Magic Tape

Optional Accessories: 6-pin wire harness, relay (12V/24V), 13,500 mAh power bank.

Why Choose the EM109?

Whether managing a trucking fleet, securing company vehicles, or protecting your motorcycle, the EM109 delivers reliability, precision, and control. Its advanced alerts and remote engine management make it a top choice for drivers and fleet managers alike.

Download EM109 GPS Tracker Manual
